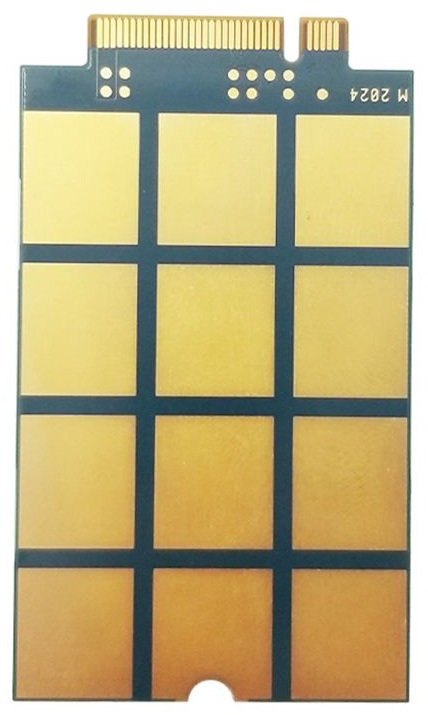

RM520N-GL M.2 (RM520NGLAA-M20-SGASA) Multi-mode 5G modul miniPCIe
The RM520N is a series of 5G IoT modules specially optimized for IoT/eMBB applications, designed in an M.2 form factor in accordance with the 3GPP Release 16 specification, which supports both 5G NSA and SA modes.
The RM520N is compatible with Quectel's 5G module series RM50xQ, LTE-A Cat 6 module EM06, Cat 12 module series EM12/EM12xR/EM120K, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G.
The RM520N is an industrial-grade module for industrial and commercial applications only. It covers nearly all the mainstream carriers worldwide and supports Qualcomm® IZat location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo).
The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and dependable positioning capability.
Thanks to a rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows 7/8/8.1/10, Linux, and Android) the module can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs and digital signage.
Key Features:
- 5G/4G/3G multi-mode module in M.2 form factor, optimized for IoT and eMBB applications
- Worldwide 5G and LTE-A coverage
- Supports NSA and SA modes
- Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment
- Feature refinements: DFOTA and VoLTE (optional)
Summary:
- 5G NR Sub-6GHz module
- M.2 form factor
- 30mm × 52mm × 2.3mm
- SA data rates: 2.4Gbps (DL) / 900Mbps (UL)
- NSA data rates: 3.4Gbps (DL) / 550Mbps (UL)
- Extended temperature range of -40°C to +85°C
Specification:
- Model: RM520N-GL (RM520NGLAA-M20-SGASA)
- Datasheet

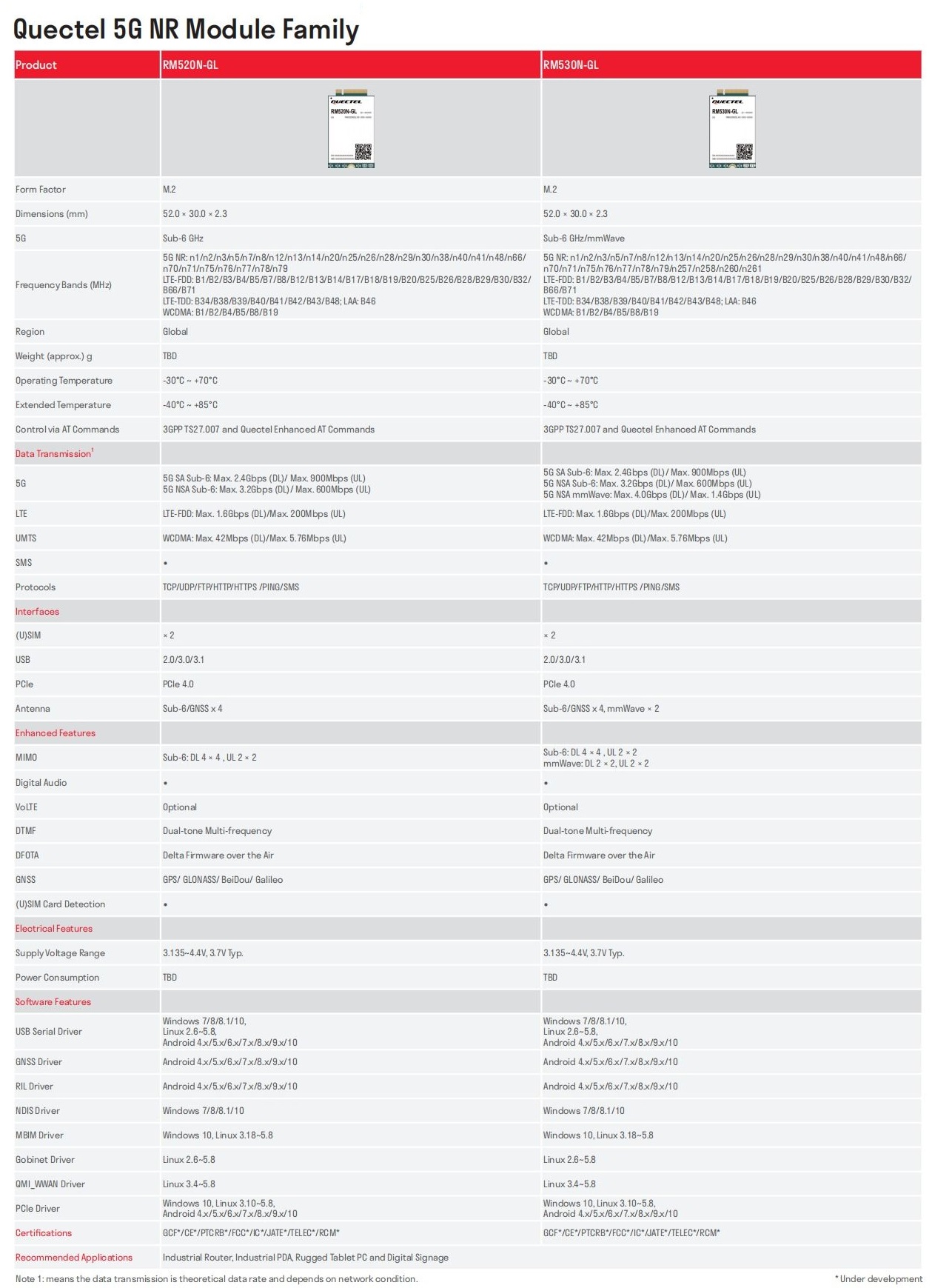

- Quectel_Product_Brochure_V7.4
Frequency:
5G
- 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
- 5G NR NSA: n41/n77/n78/n79
- 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
- MIMO(DL): 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
- MIMO(UL): 2 × 2 MIMO on n41/n77/n78/n79
LTE:
- LTE Category: Cat 16(DL)/ Cat 18(UL)
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- LAA: B46 (2 × 2 MIMO Supported Only)
- 4x4 MIMO(DL): B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
UMTS:
- WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
GNSS:
- GPS/GLONASS/BeiDou (Compass)/Galileo
Certification:
- Regulatory: GCF*(Global)|CE(Europe)|PTCRB*(North America)|FCC*(America)|IC*(Canada)|JATE*/TELEC*(Japan)|RCM(Australia/New Zealand)
- Carrier: Verizon*/AT&T*/T-Mobile*(America)|NTT DOCOMO*(Japan)|Telstra*(Australia)
- Others: RoHS/WHQL
Data Transmission:
- 5G SA Sub-6: 2.1Gbps (DL)/450Mbps(UL)
- 5G NSA Sub-6: 2.5Gbps (DL)/650Mbps(UL)
- LTE: 1.0Gbps (DL)/200Mbps(UL)
- WCDMA: 42Mbps (DL)/5.7Mbps(UL)
Interface:
- (U)SIM: x1
- USB 2.0: x1
- USB 3.0/3.1: x1
- PCIe 3.0: x1
- PCM: x1
- Antenna: x4
Voice:
- VoLTE: Digital Audio and VoLTE (Voice over LTE)
Physical:
- Dimension(mm): 52.0 x 30.0 x 2.3
- Net Weight(g): 8.7
Temperature Range:
- Operation Temperature: -30°C ~ +70°C
- Extended Temperature: -40°C ~ +85°C
