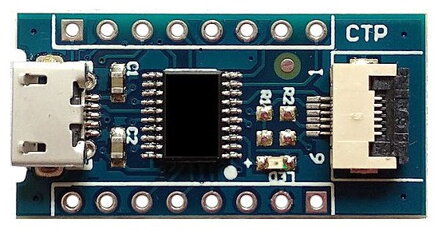

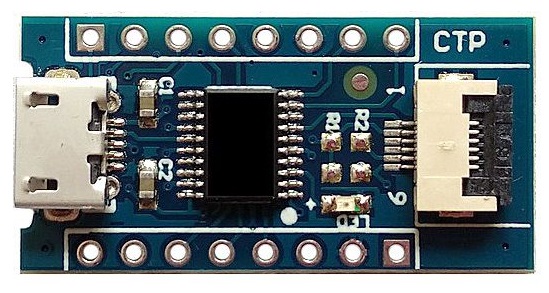

TS01 Capacitive Touch Controller I2C to USB
Touch screen 6Pin (0.5mm pitch) interface line sequence: the default welding flip cover is connected to the FPC socket.
If your touch screen outlet interface is not the above line sequence, please purchase a matching line sequence adapter board: https://item.taobao.com/item.htm?spm=a1z38n.10677092.0.0.7e4d1debqyYCB5&id=569728588994
Please check the line sequence of the touch screen interface carefully before purchasing. If you apply for a return because the line sequence is incorrect, the buyer needs to bear the shipping cost.
Compatible with: Windows 10/8/7/Vista/XP/2000/98/CE/Mobile, Android, Ubuntu, Raspberry Pi (Raspberry Pi), QT, Kali, Mint, Angstrom, mainstream Linux systems, zero "dead angle" support all systems.
Driver-free, plug and play.
Capacitive touch screen USB driver module function description:
- 1. High-performance industrial-grade MCU based on the real-time operating system of the Internet of Things.
- 2. Support GT/FT/ILI/CYPRESS series touch chips.
- 3. By default, it supports up to 10 touch points.
- 4. Adopt innovative capacitive touch multi-point intelligent recognition algorithm, never lose points, fast response
- . Intelligent recognition algorithm for left and right hand habits;
- . Touch ID intelligent coloring algorithm;
- . Anti-"jump point" algorithm;
- . Waterproof algorithm;
- 5. Adopt capacitive touch intelligent calibration algorithm, support automatic/manual calibration of touch screen
- . Support to calibrate the touch screen to landscape/portrait mode;
- . Support automatic adaptation of touch screen resolution;
- . Support any viewing angle to calibrate the touch screen;
- 6. Original touch screen and USB communication automatic detection function.
- 7. Equipped with durable horn MicroUSB socket and 6P-FPC cable connection socket to adapt to industrial application scenarios.
- 8. Appearance size: 30x15mm
Some counterfeit brands currently on the market mainly have the following problems:
- 1. After Windows/Android is turned on, restarted, hibernated/woke up, the touch control fails.
- 2. The touch is not sensitive and unresponsive.
- 3. It cannot be plug and play, and the configuration parameters of the touch screen need to be rewritten manually, so it is easy to permanently damage the touch screen or the touch screen does not work properly!
- 4. Does not support automatic/manual calibration of touch screen coordinates.
- 5. There is no waterproof function.
- We solemnly promise: this USB driver module does not have the above problems at all ! ! !
Technical parameter:
- 1. Operation method:
- For Windows system: support touch operations such as swipe, zoom, click, double-click, and long press to pop up the right-click menu.
- For Android system: support touch operations such as swipe, zoom, click, and long press.
- 2. The maximum supported resolution is 4096x4096.
- 3. Compatible interface: USB1.0, USB1.1, USB2.0, USB3.0, mobile phone USB OTG and other interfaces.
- 4. Equipped with a working status indicator light, it is convenient to understand the working status of the USB drive module.
- 5. Support ultra-wide working voltage: 3.8V ~ 12V
- 6. Working current: 10mA ~ 100mA
- 7. Storage temperature: -40°C ~ 80°C
- 8. Working temperature: -40°C ~ 80°C
- 9. Appearance size: 22.5 x 41.5mm
Applicable fields: automotive, industrial control, medical, flat panel display, etc.
Precautions:
- 1. If it is used for a car touch screen with touch buttons, please contact customer service!
- 2. If the touch area of the touch screen is larger than the display area, please contact customer service!
Instructions for use:
Step 1: Prepare
(1) FFC flat wire connection method
6P interface of the USB drive module: connect to the bottom, 6P interface of the touch screen: connect to the top/bottom. (Up connection: pins with tin face up; Bottom connection: pins with tin face down)
(2) Insert the USB port of the computer, the red light will turn off once, indicating that the touch screen has been initialized correctly.
Step 2: Open Paint (drawing tablet) and use your fingers to draw lines with multiple points
When the finger presses the touch screen, the red light will be on; when the finger is lifted, the red light will be off.
Shipping list: USB driver module: 1
Notes on warranty service:
- If there is no welding, the protective film and the label have not been touched, they can be replaced within 24 hours after receiving the goods; except for man-made damage, natural disasters, force majeure and other factors, the warranty is within 3 years;
- if the welding or protective film and label have been touched, the warranty will not be guaranteed.
- No refunds will be given! Also please new and old customers understand!
Note to buyers:
- 1. Please open the package at the courier or Cainiao Station or the smart self-pickup cabinet on-site for inspection and take a complete unpacking video as a basis. If there is no shortage/damage, sign for receipt, and if there is shortage/damage, refuse to sign for receipt; after signing for receipt, you will find shortage / If it is damaged, it will be borne by the buyer, and it will not be reissued or returned.
- 2. The baby display pictures are for reference only. Due to different product batches, the appearance of the baby will be slightly different. Don't shoot if you mind!
- 3. Please choose SF Express for urgent needs, and you need to make up the price difference. If you take pictures, please contact customer service to modify the freight.
- 4. Delivery time: Please negotiate with the seller, and the delivery time replied by the seller shall prevail.
- 5. After receiving the goods, please test and confirm that they are suitable before tearing off the film and attaching them to the machine; otherwise, it will be considered as affecting the secondary sales and will not be returned.
- 6. Because the product profit is relatively thin! After-sales and replacement freight are paid separately, that is, whoever delivers the goods shall bear the freight; due to the labor cost of packing and shipping, the buyer shall bear the return freight and shipping freight for returning the goods.
- 7. For orders ≥ 1,000 yuan (can be accumulated), ordinary invoices can be printed by regular machines, and 6% tax is required. If you need an invoice, please contact customer service.
- (Photographed is deemed to agree to the baby details terms)
