Popis:
- STM32 32-bit ARM Cortex MCUs
- Napájení i komunikace přes USB kabel.
- Čtení, Zápis a Verifikace
- po výběru obvodu se zobrazí, jak se má umístit do patice
- ICSP výstup na kabel
- podpora Win98, 2000, XP, Vista, 7 (32 i 64bit) ...
- jednoduchý obslužný software
- 2x LED, indikace napájení a komunikace
- Výrobce: Čína, klon

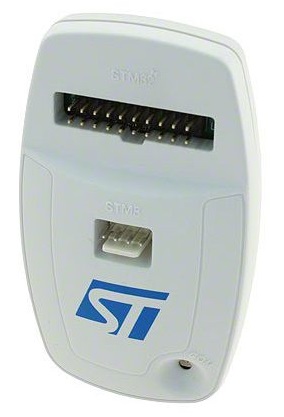

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families.
The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 2500 VRMS.
STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features:
- 5 V power supplied by a USB connector
- USB 2.0 full speed compatible interface
- USB standard A to mini B cable
- SWIM specific features
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low-speed and high-speed modes supported
- SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
- SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
- JTAG/serial wire debugging (SWD) specific features
- 1.65 V to 3.6 V application voltage supported on the JTAG/SWD interface and 5 V tolerant inputs
- JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
- JTAG supported
- SWD and serial wire viewer (SWV) communication supported
- Direct firmware update feature supported (DFU)
- Status LED which blinks during communication with the PC
- Operating temperature 0 to 50 °C
- 2500 VRMS high isolation voltage (ST-LINK/V2-ISOL only)

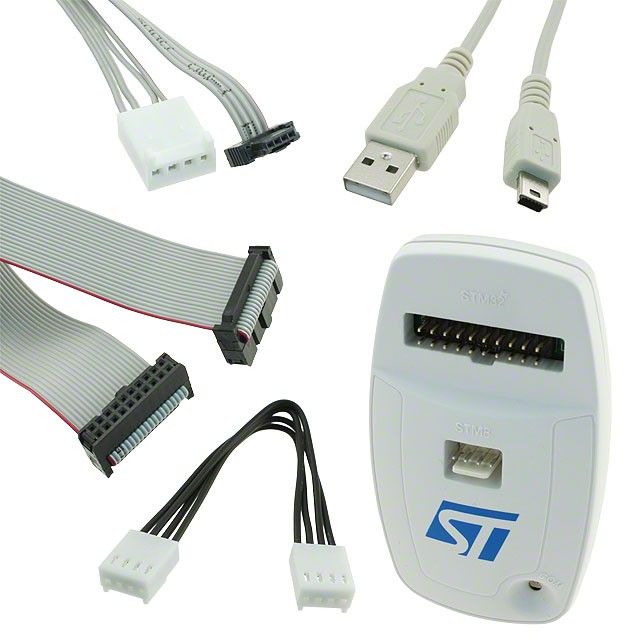

Balení obsahuje:
- 1x ST-LINK/V2 Programátor
- 1x USB
- 3x connecting cables
POZOR !!!
- Toto je DIY programátor, pro pokročilé uživatele, kteří vědí, jak jej používat.
- K tomu, aby fungoval, potřebuje pouze ST-link V2 USB ovladače.
- Je dodáván BEZ programovacího softwaru.
- Je zodpovědností uživatele programovací software vyhledat, nainstalovat a nastavit.
- Existuje řada bezplatných programovacích aplikací, které jsou kompatibilní s tímto programátorem.
- Níže jsou uvedeny odkazy na některé z nich.
- Odkazy poskytujeme BEZ záruky a podpory
Product overview: ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-link V2 USB Drivers: st-link_v2_usbdriver.zip
Software: ST Visual Programmer (STVP)
