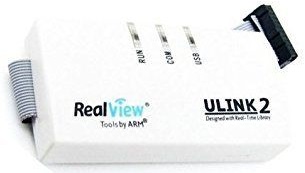

The ULINK2 Debug Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware.
ULINK2 Features:
- Výrobce: RealView
- Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
- JTAG speed up to 10MHz
- Serial Wire Debug (SWD) support for ARM Cortex-M based devices
- Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
- NXP 2-wire debug interface (P89LPC952 and P89LPC954) support
- with memory R/W during execution, terminal emulation, and serial debug output
- Seamless integration with the Keil IDE & Debugger
- Wide target voltage range: 2.7V - 5.5V
- USB powered (no power supply required)
- Plug-and-Play installation using
Target:
- 10-pin (0.05") - Cortex Debug Connector
- 20-pin (0.10") - ARM Standard JTAG Connector
ULINK2 may be used for:
- (using on-chip JTAG, SWD, or SWV),
- (using user-configurable Flash programming algorithms).

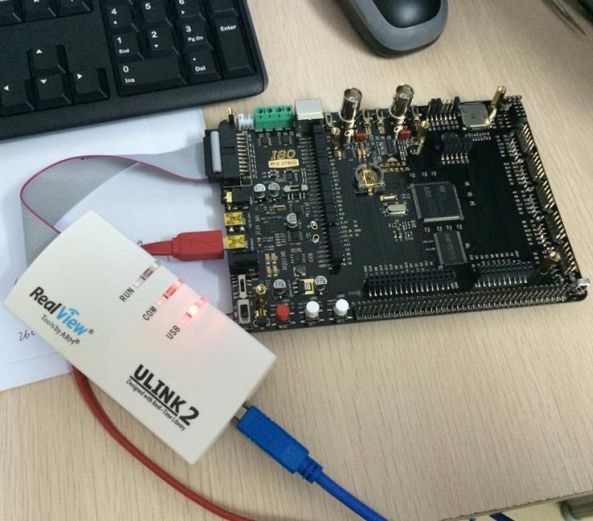

- Using the ULINK2 adapter together with the Keil , you can easily create, download, and test embedded applications on target hardware.
- The Keil ULINK2 USB-JTAG Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware.

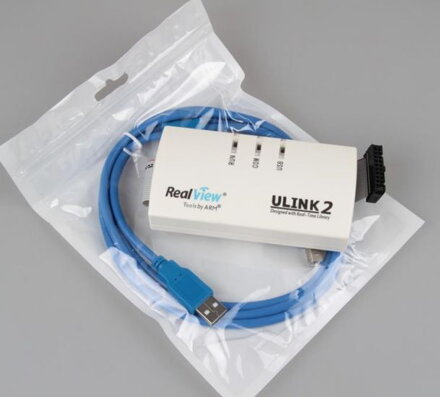

Balení obsahuje:
- 1x Ulink2 USB JTAG Adapter
- 1x JTAG cable 20 Pin
- 1x Cable USB 2.0
Supported chips:
ARM7/ARM9/Cortex-M3
LPC2101, LPC2102, LPC2103, LPC2104, LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136, LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214, LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468, LPC2880, LPC2888, LPC3180
LH75400, LH75401, LH75410, LH75411
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315, LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801, LM3S811, LM3S812, LM3S815, LM3S828
S3C2410A, S3C2440A, S3C44B0X, S3C4510B
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128, AT91SAM7XC256, AT91SAM9260, AT91SAM9261
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42, STR911FM44, STR912FW42, STR912FW44
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768
Actel (ARM7/ARM9/Cortex Family)
COREMP7, Cortex-M1
Analog Devices (ARM7/ARM9/Cortex Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7128, ADuC7129, ADuC7229
ARM (ARM7/ARM9/Cortex Family)
Cortex-M0, Cortex-M1 (Altera), Cortex-M3
Atmel (ARM7/ARM9/Cortex Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM3U1C, AT91SAM3U1E, AT91SAM3U2C, AT91SAM3U2E, AT91SAM3U4C, AT91SAM3U4E, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32, AT91SAM7S321, AT91SAM7S512, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7X512, AT91SAM7XC128, AT91SAM7XC256, AT91SAM7XC512, AT91SAM9260, AT91SAM9261, AT91SAM9261S, AT91SAM9263, AT91SAM9G10, AT91SAM9G20, AT91SAM9G45, AT91SAM9R64, AT91SAM9RL64, AT91SAM9XE128, AT91SAM9XE256, AT91SAM9XE512
AustriaMicroSystems (ARM7/ARM9/Cortex Family)
AS3525
Cirrus Logic (ARM7/ARM9/Cortex Family)
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ
Energy Micro (ARM7/ARM9/Cortex Family)
EFM32G200F16, EFM32G200F32, EFM32G200F64, EFM32G210F128, EFM32G230F128, EFM32G230F32, EFM32G230F64, EFM32G280F128, EFM32G280F32, EFM32G280F64, EFM32G290F128, EFM32G290F32, EFM32G290F64, EFM32G840F128, EFM32G840F32, EFM32G840F64, EFM32G880F128, EFM32G880F32, EFM32G880F64, EFM32G890F128, EFM32G890F32, EFM32G890F64
Freescale Semiconductor (ARM7/ARM9/Cortex Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L
Luminary Micro (ARM7/ARM9/Cortex Family)
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1637, LM3S1751, LM3S1776, LM3S1850, LM3S1911, LM3S1918, LM3S1937, LM3S1958, LM3S1960, LM3S1968, LM3S2110, LM3S2139, LM3S2276, LM3S2410, LM3S2412, LM3S2432, LM3S2533, LM3S2601, LM3S2608, LM3S2616, LM3S2620, LM3S2637, LM3S2651, LM3S2671, LM3S2678, LM3S2730, LM3S2739, LM3S2776, LM3S2793, LM3S2911, LM3S2918, LM3S2939, LM3S2948, LM3S2950, LM3S2965, LM3S2B93, LM3S300, LM3S301, LM3S308, LM3S310, LM3S315, LM3S316, LM3S317, LM3S328, LM3S3651, LM3S3739, LM3S3748, LM3S3749, LM3S3759, LM3S3768, LM3S5632, LM3S5652, LM3S5662, LM3S5732, LM3S5737, LM3S5739, LM3S5747, LM3S5749, LM3S5752, LM3S5757, LM3S5762, LM3S5767, LM3S5768, LM3S5769, LM3S5791, LM3S5B91, LM3S600, LM3S601, LM3S608, LM3S610, LM3S6100, LM3S611, LM3S6110, LM3S612, LM3S613, LM3S615, LM3S617, LM3S618, LM3S628, LM3S6420, LM3S6422, LM3S6432, LM3S6537, LM3S6610, LM3S6611, LM3S6618, LM3S6633, LM3S6637, LM3S6730, LM3S6753, LM3S6911, LM3S6918, LM3S6938, LM3S6950, LM3S6952, LM3S6965, LM3S800, LM3S801, LM3S808, LM3S811, LM3S812, LM3S815, LM3S817, LM3S818, LM3S828, LM3S8530, LM3S8538, LM3S8630, LM3S8730, LM3S8733, LM3S8738, LM3S8930, LM3S8933, LM3S8938, LM3S8962, LM3S8970, LM3S8971, LM3S9790, LM3S9792, LM3S9B90, LM3S9B92, LM3S9B95, LM3S9B96
Nuvoton (ARM7/ARM9/Cortex Family)
M0516LAN, M0516ZAN, M052LAN, M052ZAN, M054LAN, M054ZAN, M058LAN, M058ZAN, MINI51LAN, MINI51ZAN, MINI52LAN,MINI52ZAN, MINI54LAN, MINI54ZAN, NUC100LC1AN, NUC100LD1AN, NUC100LD2AN, NUC100LD3AN, NUC100LE3AN,NUC100RC1AN, NUC100RD1AN, NUC100RD2AN, NUC100RD3AN, NUC100RE3AN, NUC100VD2AN, NUC100VD3AN,NUC100VE3AN, NUC101LC1AN, NUC101LD2AN, NUC101LE3AN, NUC101RC1AN, NUC101RD2AN, NUC101RE3AN,NUC101VC1AN, NUC101VD2AN, NUC101VE3AN, NUC120LC1AN, NUC120LD1AN, NUC120LD2AN, NUC120LD3AN,NUC120LE3AN, NUC120RC1AN, NUC120RD1AN, NUC120RD2AN, NUC120RD3AN, NUC120RE3AN, NUC120VD2AN,NUC120VD3AN, NUC120VE3AN, NUC122LC1AN, NUC122LD2AN, NUC122SC1AN, NUC122SD2AN, NUC122ZC1AN,NUC122ZD2AN, NUC130LD2AN, NUC130LD3AN, NUC130LE3AN, NUC130RD2AN, NUC130RD3AN, NUC130RE3AN,NUC130VD2AN, NUC130VD3AN, NUC130VE3AN, NUC140LD2AN, NUC140LD3AN, NUC140LE3AN, NUC140RD2AN,NUC140RD3AN, NUC140RE3AN, NUC140VD2AN, NUC140VD3AN, NUC140VE3AN, NUC501ADN, NUC501BDN, NUC710,NUC740, NUC745
W90N740, W90N745, W90P710
NXP (founded by Philips) (ARM7/ARM9/Cortex Family)
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1311, LPC1313, LPC1342, LPC1343, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1764, LPC1765, LPC1766, LPC1767, LPC1768, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, LPC2106/01, LPC2109, LPC2109/01, LPC2114, LPC2114/01, LPC2119, LPC2119/01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131, LPC2131/01, LPC2132, LPC2132/01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214, LPC2214/01, LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3141, LPC3143, LPC3152, LPC3154, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010
OKI (ARM7/ARM9/Cortex Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML696201, ML69Q6203
Samsung (ARM7/ARM9/Cortex Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR
Socle Technology Corp. (ARM7/ARM9/Cortex Family)
PC7130, PC7230
STMicroelectronics (ARM7/ARM9/Cortex Family)
STA2051,STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC, STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FAM32, STR910FAW32, STR910FAZ32, STR910FM32, STR910FW32, STR911FAM42, STR911FAM44, STR911FAM46, STR911FAM47, STR911FAW42, STR911FAW44, STR911FAW46, STR911FAW47, STR911FM42, STR911FM44, STR912FAW42, STR912FAW44, STR912FAW46, STR912FAW47, STR912FAZ42, STR912FAZ44, STR912FAZ46, STR912FAZ47, STR912FW42, STR912FW44
Texas Instruments (ARM7/ARM9/Cortex Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768
Toshiba (ARM7/ARM9/Cortex Family)
TMPA900CMXBG, TMPA910CRAXBG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG
Zilog (ARM7/ARM9/Cortex Family)
ZA9L
